Products→Brazilian Boom→[TKA] 8.700

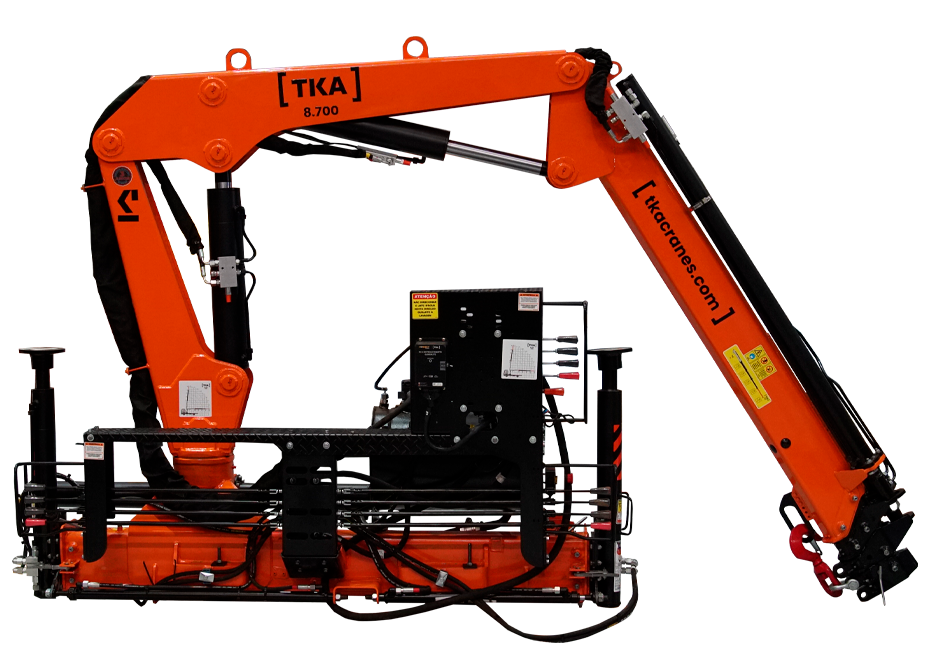

[TKA] 8.700
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 8.700

Max Capacity
2,000 kg
Own Weight
1,210 kg
Hydraulic Extensions
3
Manual Extensions
1
Max Vertical
13.5m
Max Horizontal
10.2m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity2,000 kg
Own Weight1,210 kg
Hydraulic Extensions3
Manual Extensions1
Max Vertical13.5m
Max Horizontal10.2m
Technical Diagram
[TKA] 8.700 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 8.700 .

Download PDF →
