Products→Brazilian Boom→[TKA] 10.700

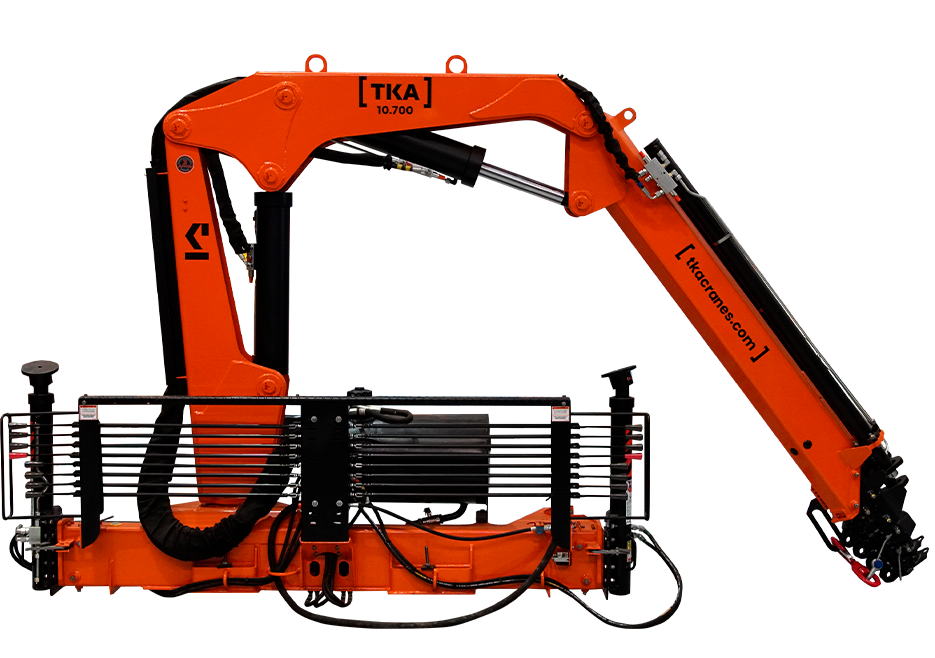

[TKA] 10.700
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 10.700

Max Capacity
2,750 kg
Own Weight
1,415 kg
Hydraulic Extensions
3
Manual Extensions
2
Max Vertical
14.5m
Max Horizontal
11.2m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity2,750 kg
Own Weight1,415 kg
Hydraulic Extensions3
Manual Extensions2
Max Vertical14.5m
Max Horizontal11.2m

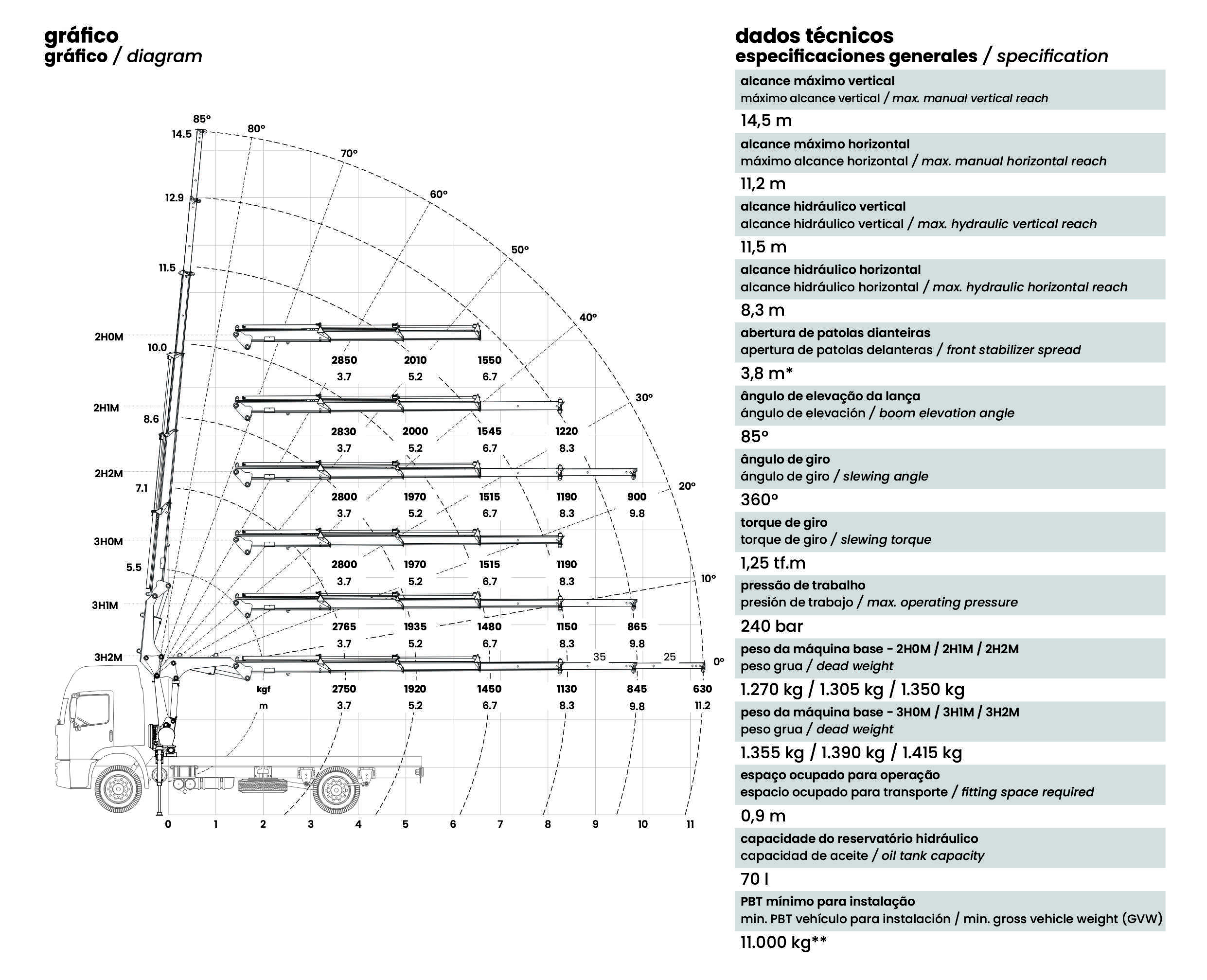

Technical Diagram
[TKA] 10.700 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 10.700 .

Download PDF →
Interested in this product?

Request a quote and our team will get back to you within one business day.

Request Quote →
Related Products
[TKA] 8.700
2,000 kg · TKA
[TKA] 12.700
3,420 kg · TKA
[TKA] 16.900
3,975 kg · TKA
[TKA] 20.700
5,060 kg · TKA
