Products→Brazilian Boom→[TKA] 16.900

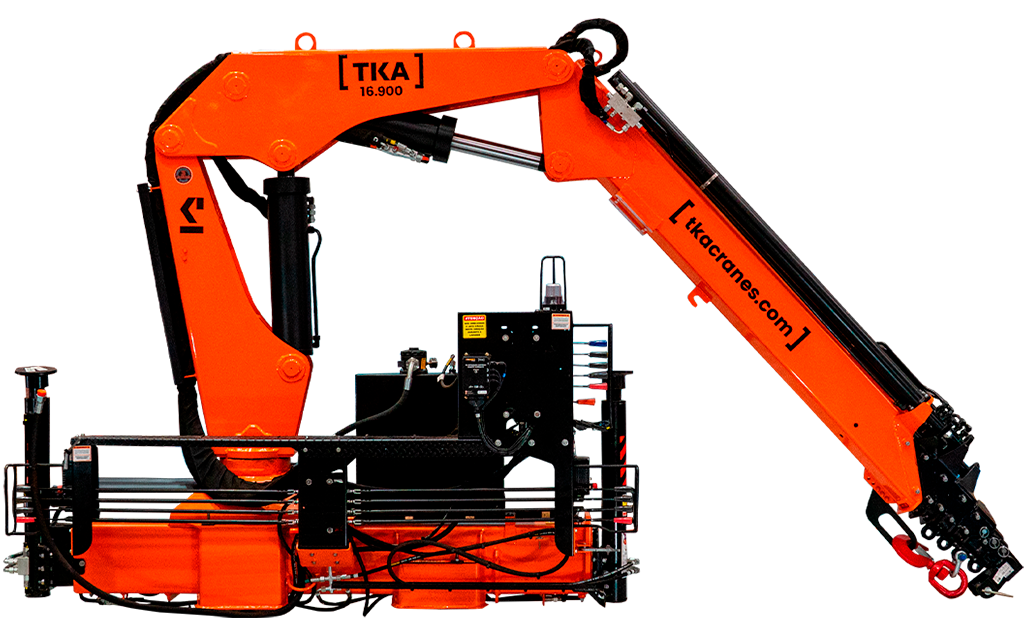

[TKA] 16.900
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 16.900

Max Capacity
3,975 kg
Own Weight
2,425 kg
Hydraulic Extensions
4
Manual Extensions
2
Max Vertical
18.8m
Max Horizontal
15.7m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity3,975 kg
Own Weight2,425 kg
Hydraulic Extensions4
Manual Extensions2
Max Vertical18.8m
Max Horizontal15.7m

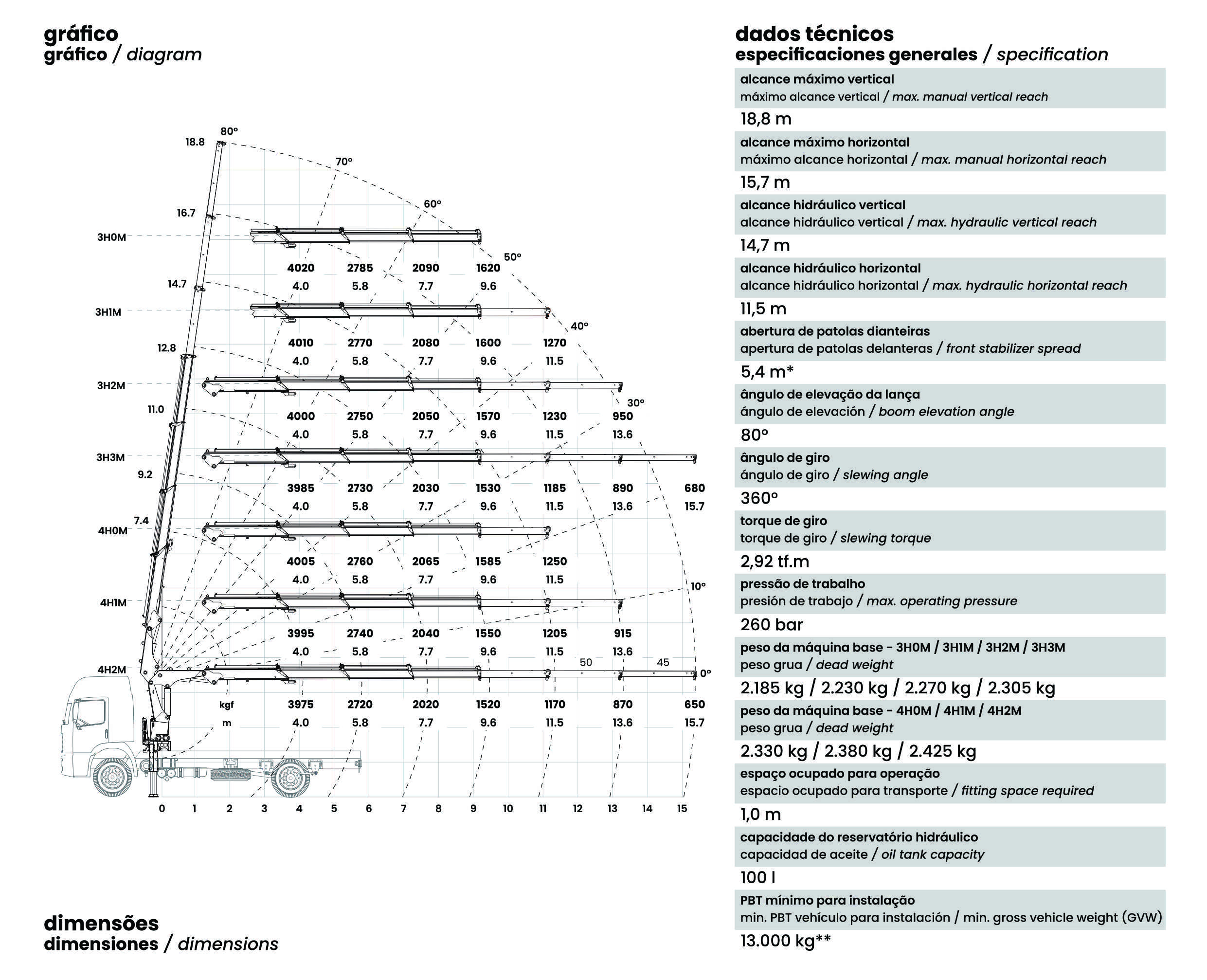

Technical Diagram
[TKA] 16.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 16.900 .

Download PDF →
