[TKA] 20.700
Brazilian Boom
Click to enlarge
TKA · Authorized Importer
Brazilian Boom

[TKA] 20.700

Max Capacity
5,060 kg
Own Weight
2,600 kg
Hydraulic Extensions
4
Manual Extensions
3
Max Vertical
22.2m
Max Horizontal
18.7m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity5,060 kg
Own Weight2,600 kg
Hydraulic Extensions4
Manual Extensions3
Max Vertical22.2m
Max Horizontal18.7m

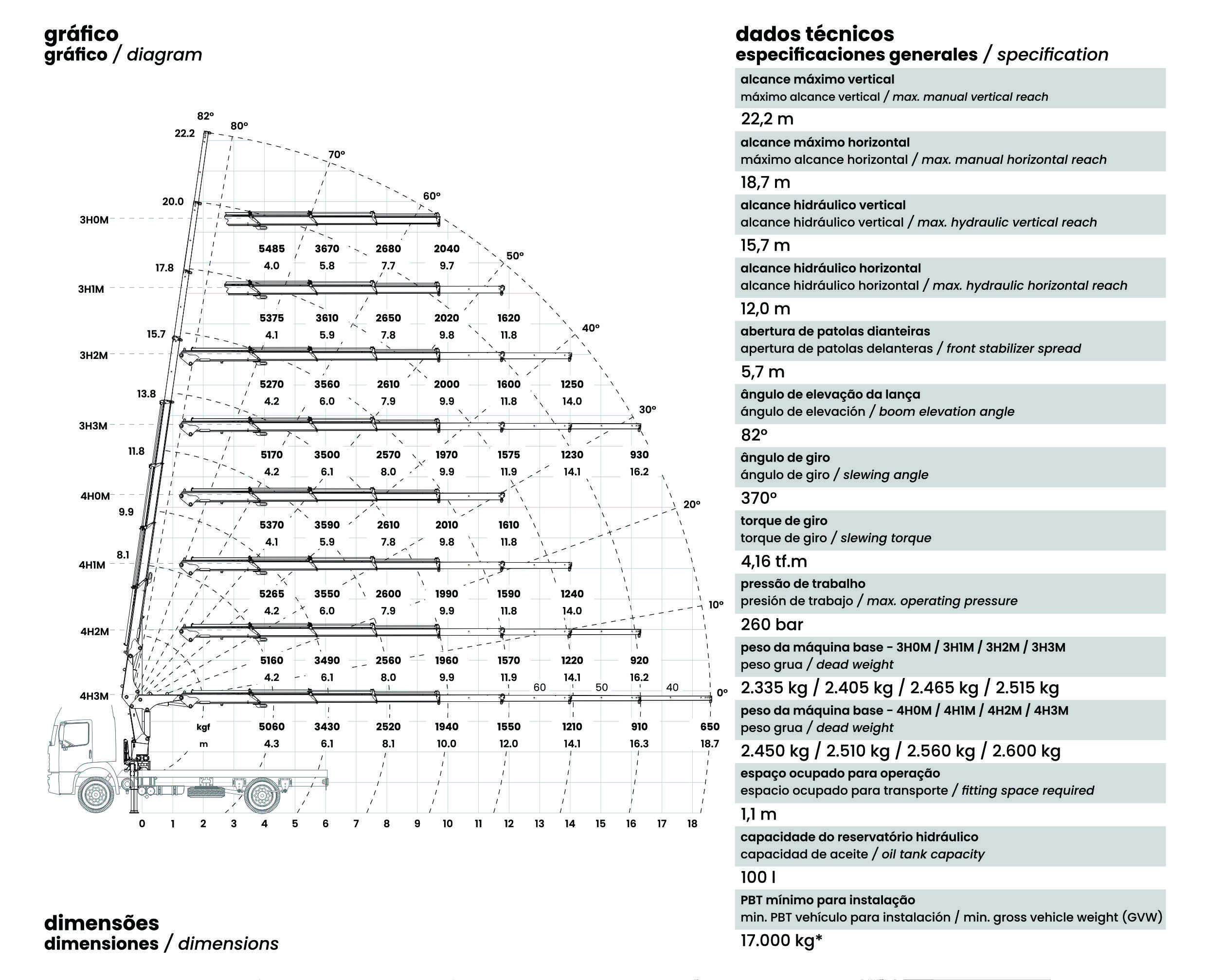

Technical Diagram
[TKA] 20.700 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 20.700 .

Download PDF →
