Products→Knuckleboom→[TKA] 17.900

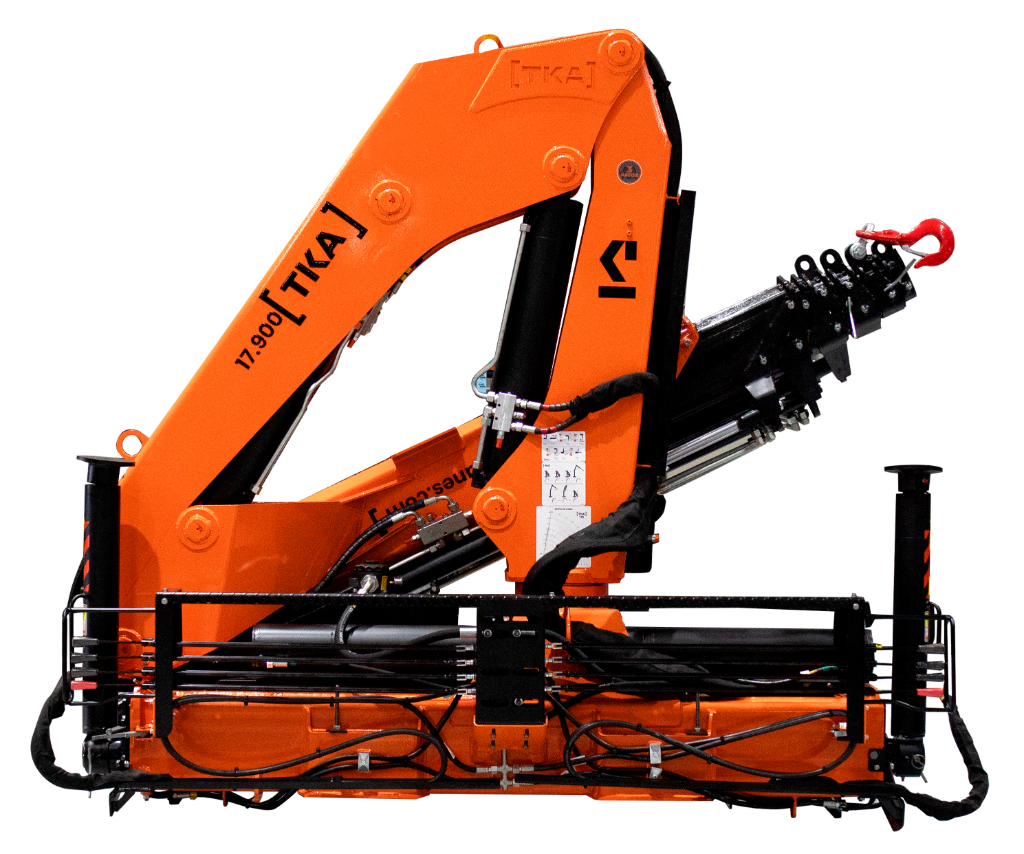

[TKA] 17.900
Knuckleboom
Click to enlarge
TKA · Authorized Importer
Knuckleboom

[TKA] 17.900

Max Capacity
7,000 kg
Own Weight
2,420 kg
Hydraulic Extensions
4
Manual Extensions
2
Max Vertical
19.6m
Max Horizontal
16.3m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity7,000 kg
Own Weight2,420 kg
Hydraulic Extensions4
Manual Extensions2
Max Vertical19.6m
Max Horizontal16.3m

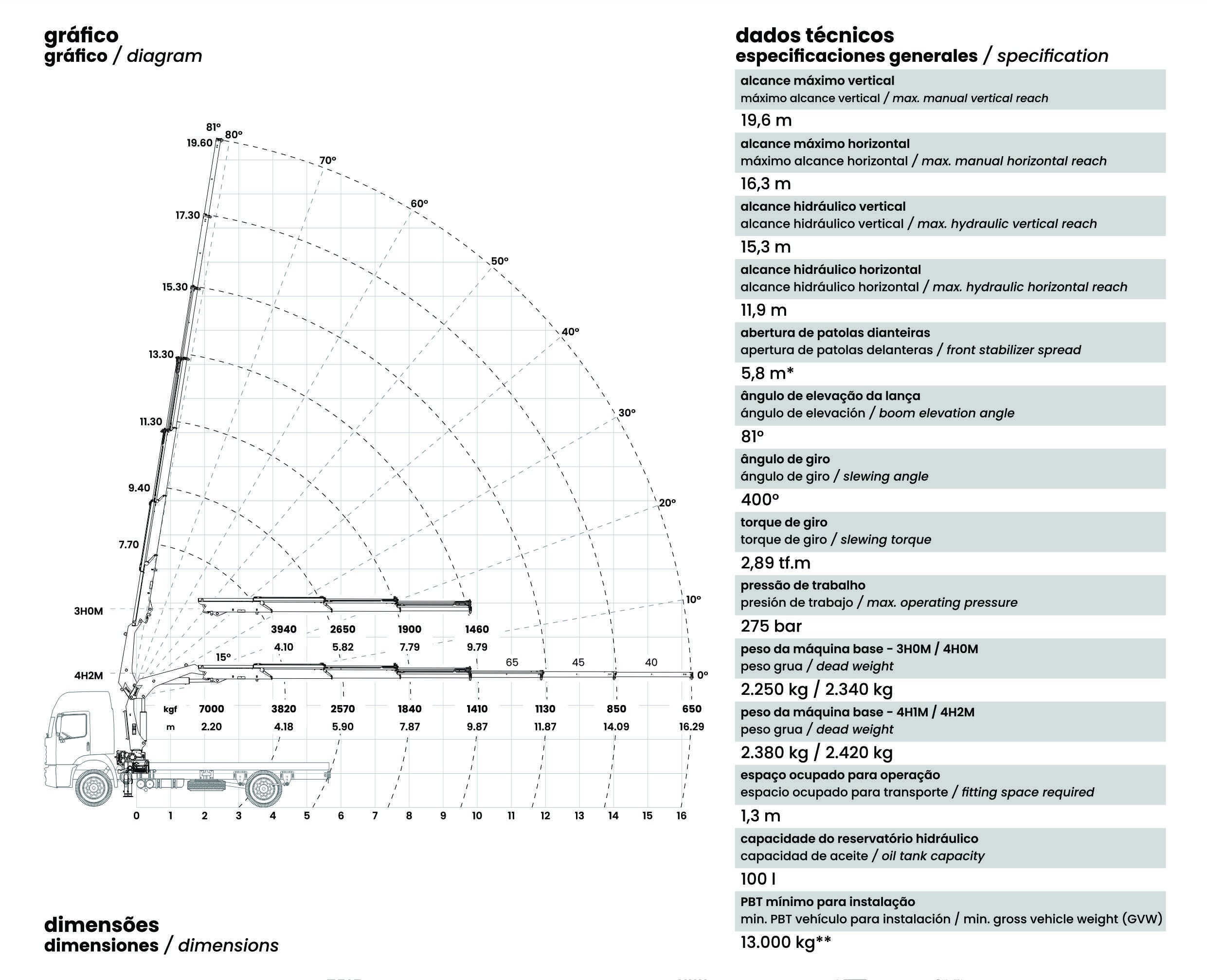

Technical Diagram
[TKA] 17.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 17.900 .

Download PDF →
Interested in this product?

Request a quote and our team will get back to you within one business day.

Request Quote →
Related Products
[TKA] 6.700
2,670 kg · TKA
[TKA] 10.900
4,000 kg · TKA
[TKA] 12.900
5,950 kg · TKA
[TKA] 15.900
5,700 kg · TKA
