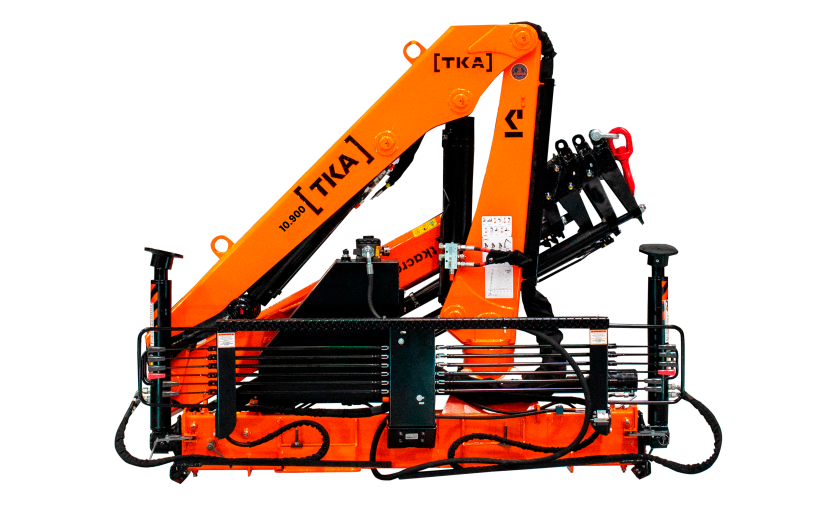

[TKA] 10.900
Knuckleboom
Click to enlarge
TKA · Authorized Importer
Knuckleboom

[TKA] 10.900

Max Capacity
4,000 kg
Own Weight
1,320 kg
Hydraulic Extensions
4
Manual Extensions
-
Max Vertical
13.6m
Max Horizontal
10.07m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity4,000 kg
Own Weight1,320 kg
Hydraulic Extensions4
Manual Extensions-
Max Vertical13.6m
Max Horizontal10.07m

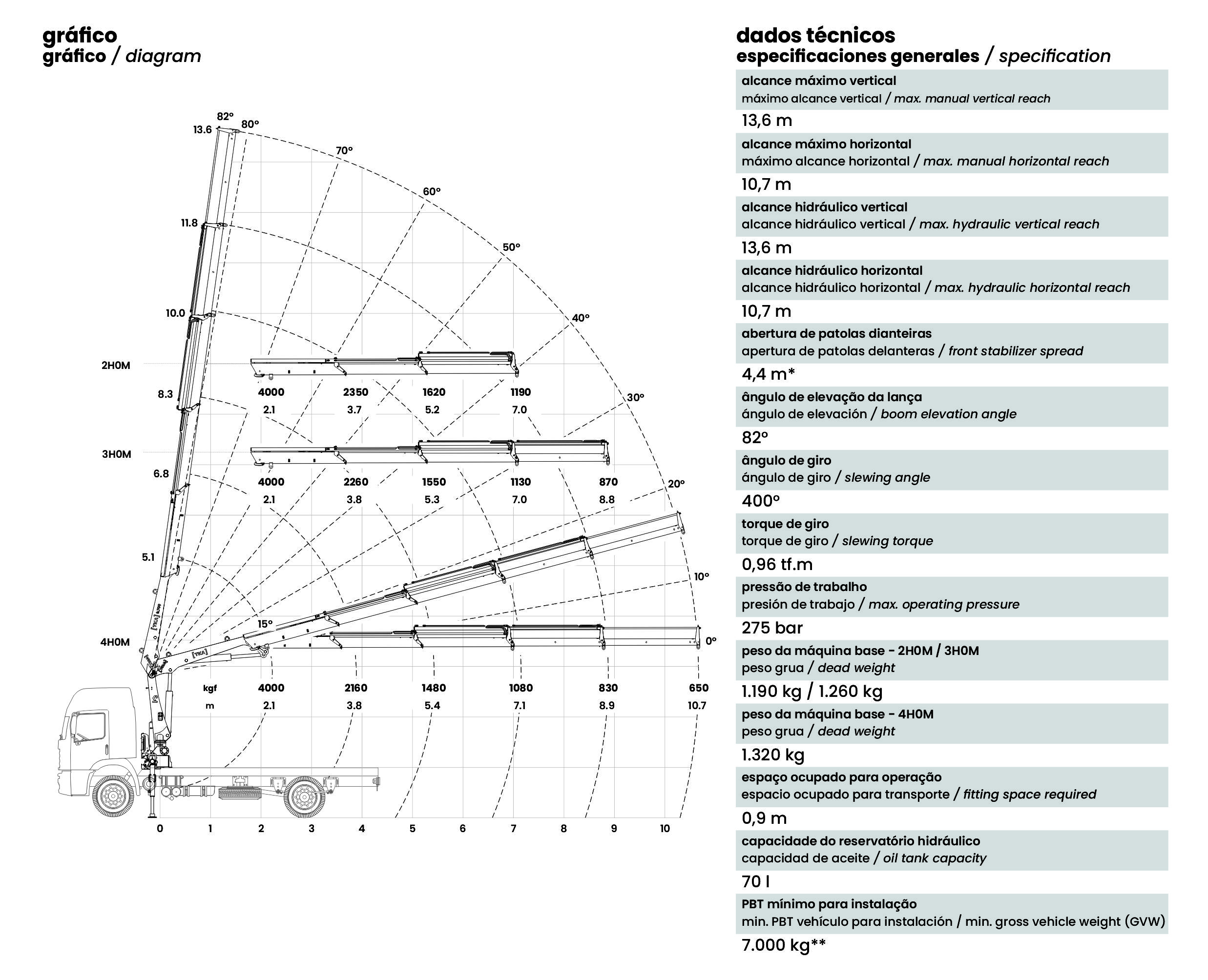

Technical Diagram
[TKA] 10.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 10.900 .

Download PDF →
