Products→Knuckleboom→[TKA] 12.900

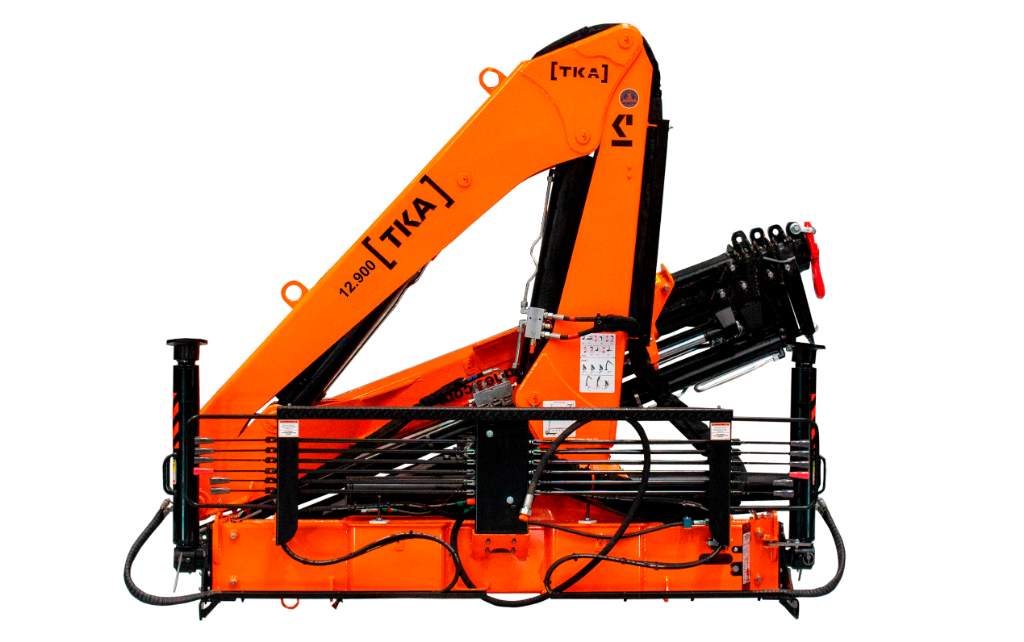

[TKA] 12.900
Knuckleboom
Click to enlarge
TKA · Authorized Importer
Knuckleboom

[TKA] 12.900

Max Capacity
5,950 kg
Own Weight
1,560 kg
Hydraulic Extensions
4
Manual Extensions
1
Max Vertical
17.3m
Max Horizontal
14.2m
Request Quote →Spec Sheet
Full Specifications
Standard● selected
Max Capacity5,950 kg
Own Weight1,560 kg
Hydraulic Extensions4
Manual Extensions1
Max Vertical17.3m
Max Horizontal14.2m

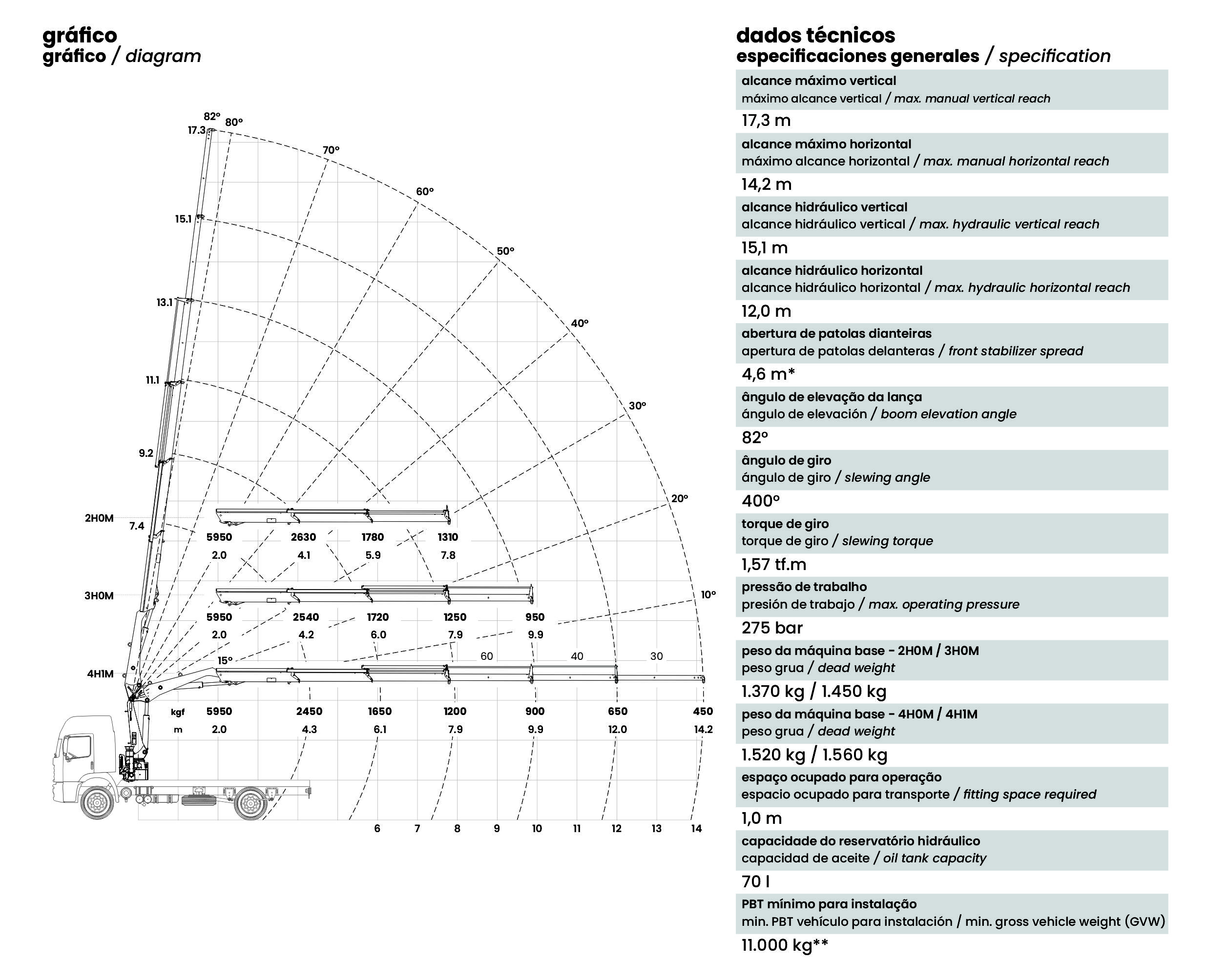

Technical Diagram
[TKA] 12.900 Standard diagram
Click to enlarge
Specification Sheet

Download the full technical specification sheet for the [TKA] 12.900 .

Download PDF →
Interested in this product?

Request a quote and our team will get back to you within one business day.

Request Quote →
