![[TKA] 15.5](/products/Images/[TKA] 15.5 D.png)
TKA · Authorized Importer
Aerial Lift

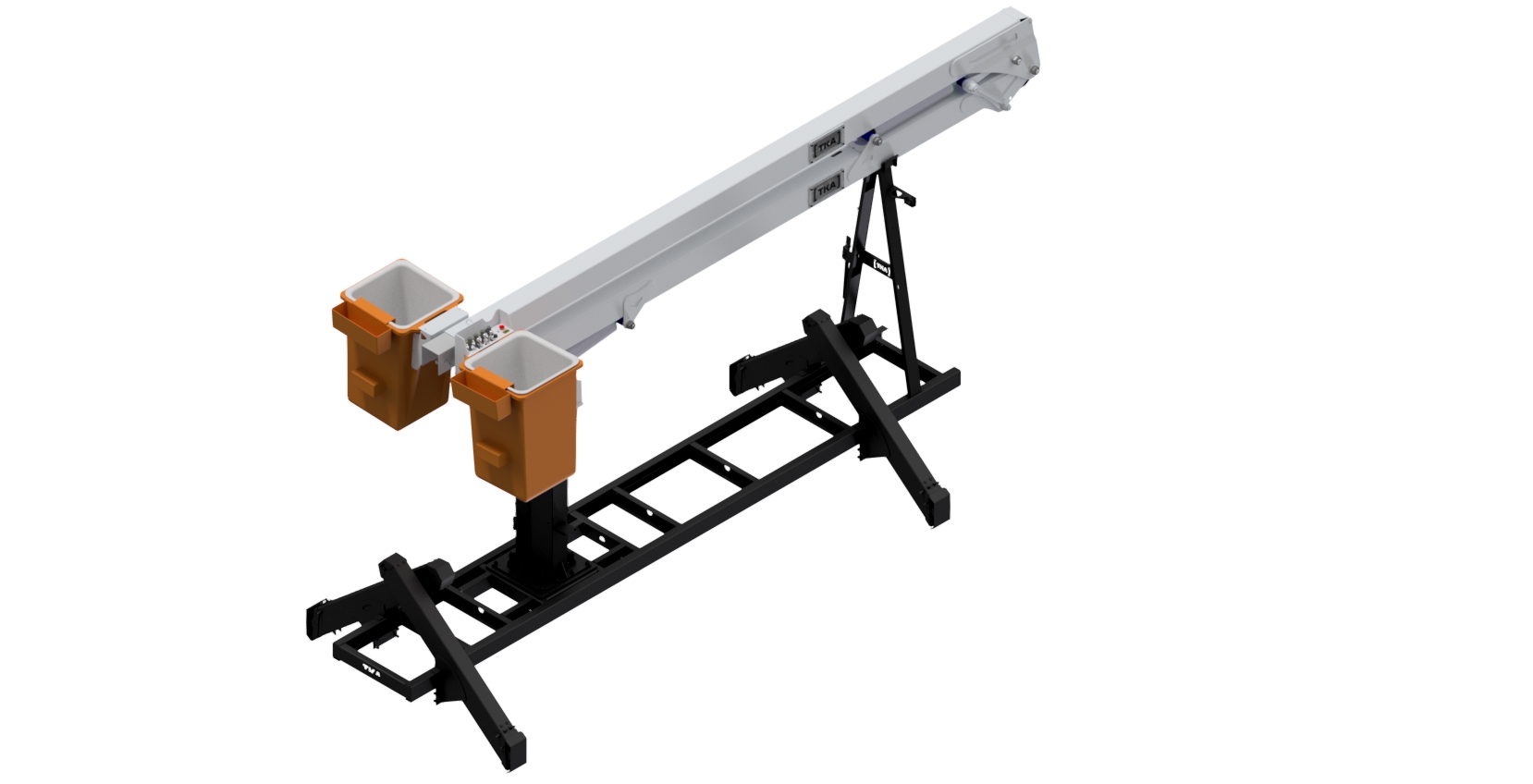

[TKA] 15.5 D
Select model
Basket Capacity
272 kg
Max Horizontal Reach
7.2m
Rotation Angle
360° infinite
Standard Stabilizers
2 units
Equipment Weight
2,180 kg
Equipment Length
6.7m
Transport Height
2.9m
Min Required GVW
10,000 kg
Full Specifications
| D● selected | Di | DDi | S | Si | SDi | |
|---|---|---|---|---|---|---|
| Basket Capacity | 272 kg | 272 kg | 272 kg | 136 kg | 136 kg | 136 kg |
| Max Horizontal Reach | 7.2m | 7.2m | 7.2m | 7.2m | 7.2m | 7.2m |
| Rotation Angle | 360° infinite | 360° infinite | 360° infinite | 360° infinite | 360° infinite | 360° infinite |
| Standard Stabilizers | 2 units | 2 units | 2 units | 2 units | 2 units | 2 units |
| Equipment Weight | 2,180 kg | 2,155 kg | 2,103 kg | 2,110 kg | 2,080 kg | 2,079 kg |
| Equipment Length | 6.7m | 6.7m | 6.7m | 6.7m | 6.7m | 6.7m |
| Transport Height | 2.9m | 2.9m | 2.9m | 2.9m | 2.9m | 2.9m |
| Min Required GVW | 10,000 kg | 10,000 kg | 10,000 kg | 10,000 kg | 10,000 kg | 10,000 kg |
All Models

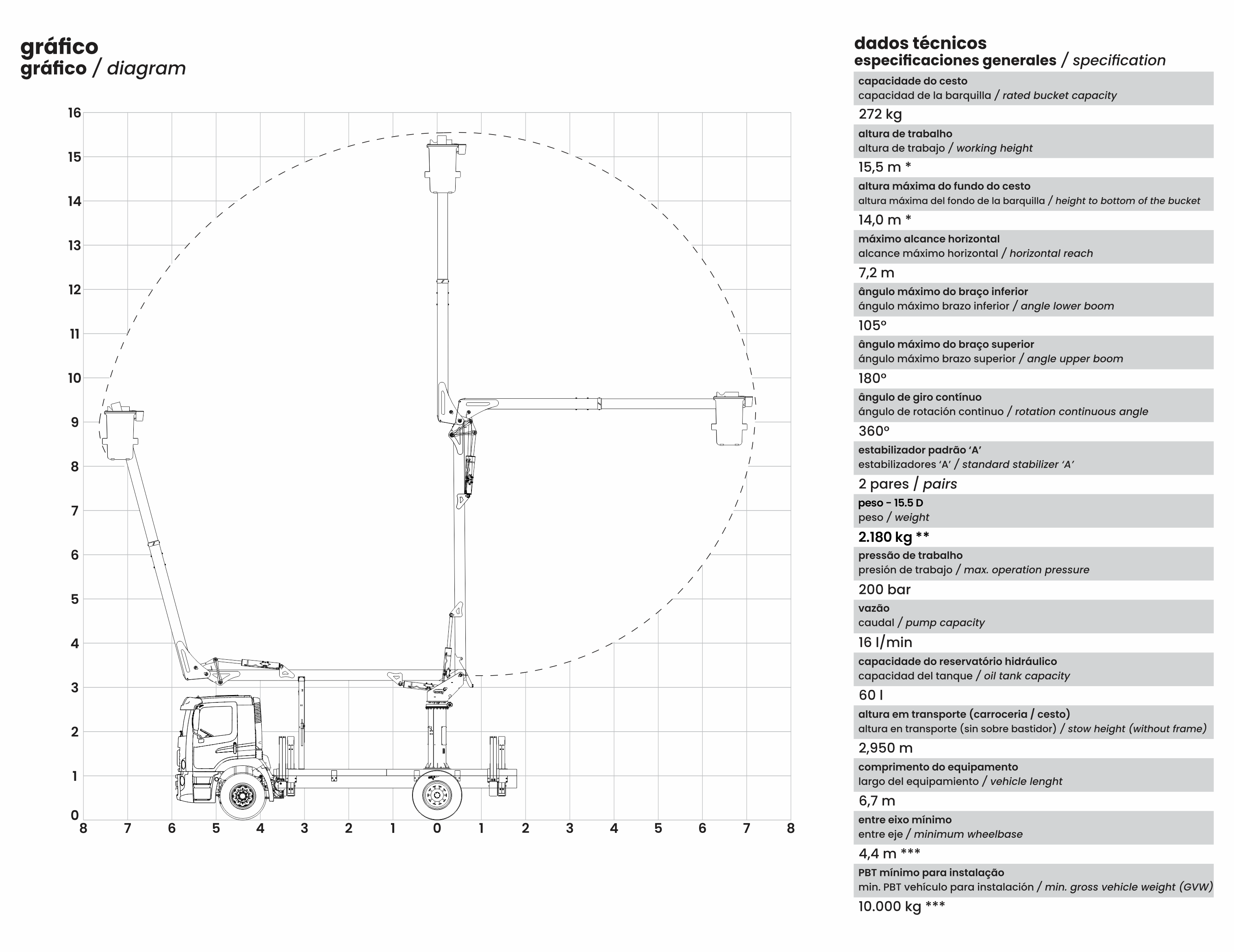

Technical Diagram
![[TKA] 15.5 D diagram](/products/diagrams/[TKA] 15.5 D-diagram.png)
Click to enlarge
Specification Sheet
Download the full technical specification sheet for the [TKA] 15.5 D.
