TKA · Authorized Importer
Aerial Lift

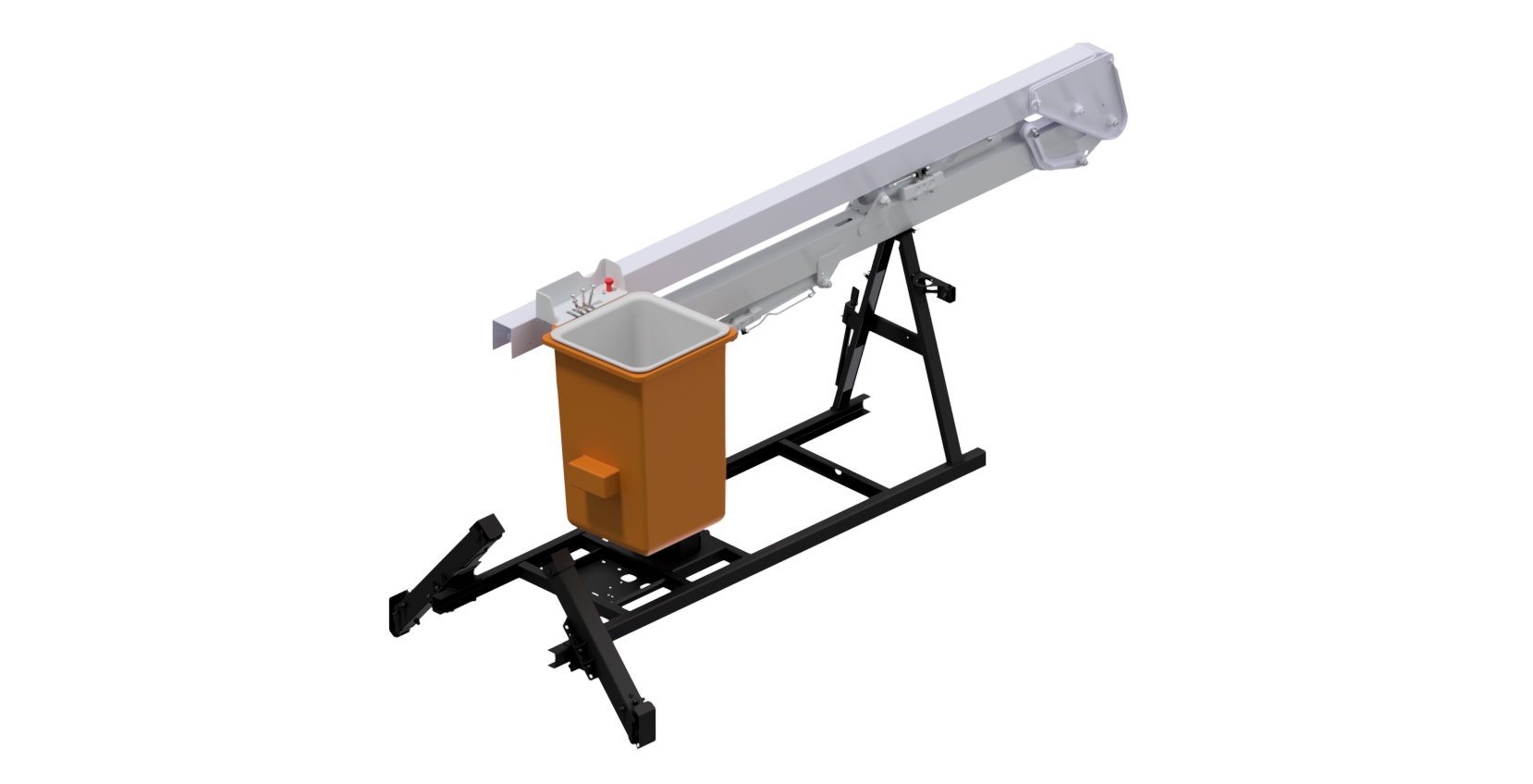

[TKA] 10 S
Select model
Basket Capacity
136 kg
Max Horizontal Reach
5.0m
Rotation Angle
360° infinite
Standard Stabilizers
2 units
Equipment Weight
910 kg
Equipment Length
4.3m
Transport Height
2.1m
Min Required GVW
3,000 kg
Full Specifications
| S● selected | SI | |
|---|---|---|
| Basket Capacity | 136 kg | 136 kg |
| Max Horizontal Reach | 5.0m | 5.0m |
| Rotation Angle | 360° infinite | 360° infinite |
| Standard Stabilizers | 2 units | 2 units |
| Equipment Weight | 910 kg | 910 kg |
| Equipment Length | 4.3m | 4.3m |
| Transport Height | 2.1m | 2.1m |
| Min Required GVW | 3,000 kg | 3,000 kg |
All Models

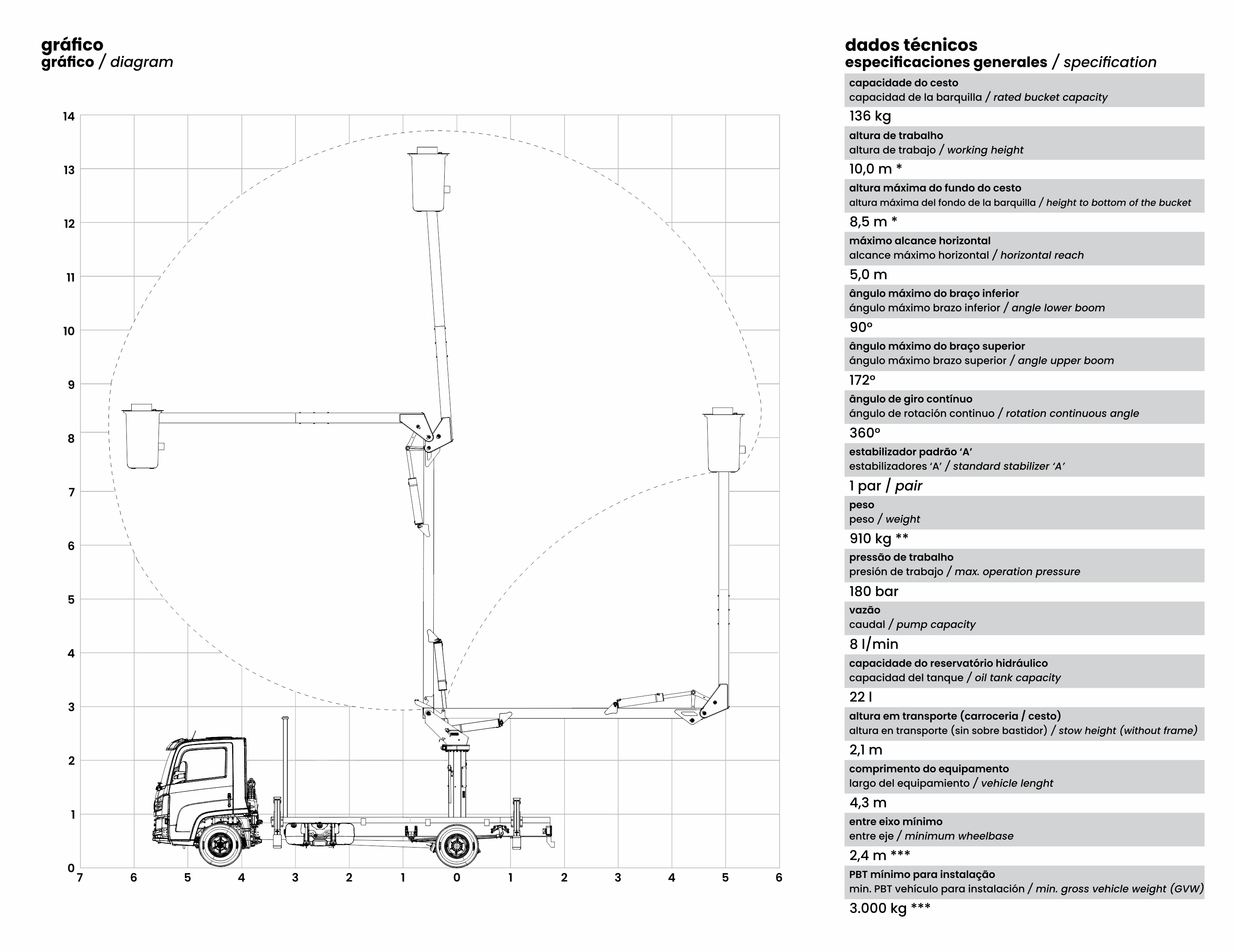

Technical Diagram
![[TKA] 10 S diagram](/products/diagrams/[TKA] 10 S-diagram.png)
Click to enlarge
