Kesla · Authorized Importer

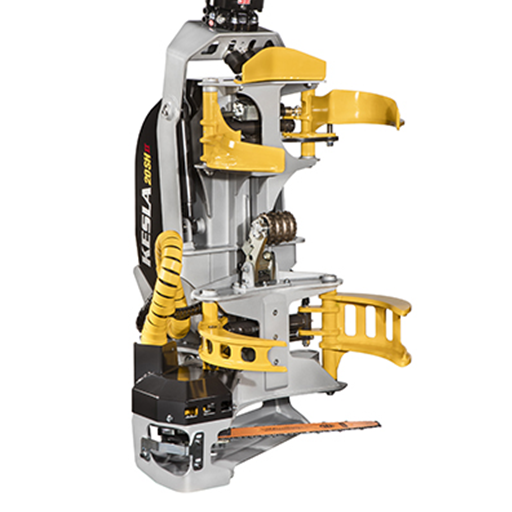

Harvester Head
Kesla 20SH-II
Max Cutting Diameter
520 mm
Weight (without rotator)
540 kg
Width (head open)
950 mm
Width (head closed)
855 mm
Length
1,400–2,150 mm
Height (without rotator)
1,275 mm
Feed Force
41 kN
Feeding
Stroke feed
Knives
2 moving + 1 fixed
Operating Pressure
175–220 bar
Flow Required
100–150 l/min
Power Required
30–55 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 520 mm |
| Weight (without rotator) | 540 kg |
| Width (head open) | 950 mm |
| Width (head closed) | 855 mm |
| Length | 1,400–2,150 mm |
| Height (without rotator) | 1,275 mm |
| Feed Force | 41 kN |
| Feeding | Stroke feed |
| Knives | 2 moving + 1 fixed |
| Operating Pressure | 175–220 bar |
| Flow Required | 100–150 l/min |
| Power Required | 30–55 kW |
Technical Diagram
Click to enlarge
