Kesla · Authorized Importer
Harvester Head

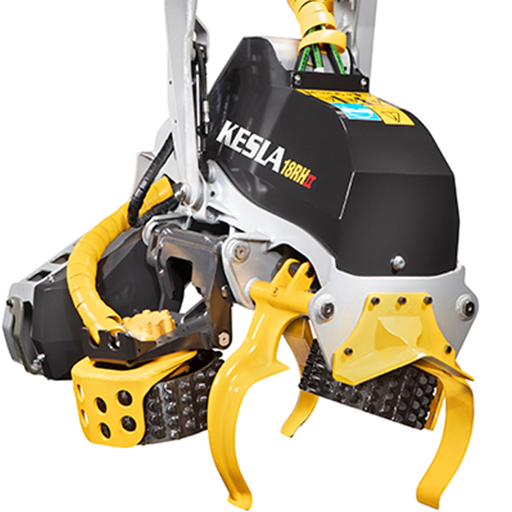

Kesla 18RH-II
Max Cutting Diameter
500 mm
Weight (without rotator)
560 kg
Width (head open)
1,160 mm
Width (head closed)
900 mm
Length
1,185 mm
Height (without rotator)
1,240 mm
Feed Force
19 kN
Feeding
2 rollers
Knives
2 moving + 1 fixed
Operating Pressure
210–240 bar
Flow Required
170–200 l/min
Power Required
60–80 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 500 mm |
| Weight (without rotator) | 560 kg |
| Width (head open) | 1,160 mm |
| Width (head closed) | 900 mm |
| Length | 1,185 mm |
| Height (without rotator) | 1,240 mm |
| Feed Force | 19 kN |
| Feeding | 2 rollers |
| Knives | 2 moving + 1 fixed |
| Operating Pressure | 210–240 bar |
| Flow Required | 170–200 l/min |
| Power Required | 60–80 kW |
Technical Diagram
Click to enlarge
