Harvester Head

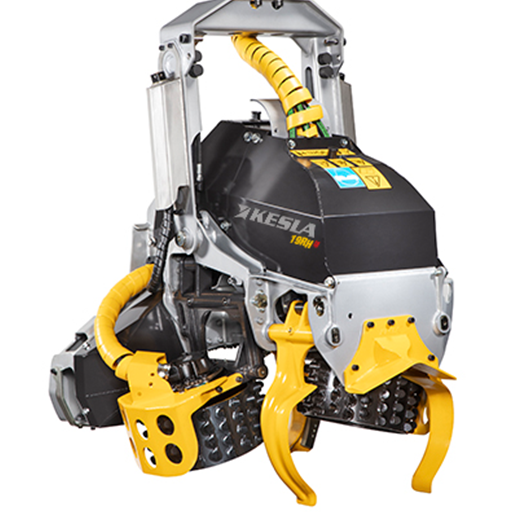

Kesla 19RH-III
Max Cutting Diameter
540 mm
Weight (without rotator)
680 kg
Width (head open)
1,300 mm
Width (head closed)
985 mm
Length
1,280 mm
Height (without rotator)
1,415 mm
Feed Force
15–19 kN
Feeding
2 rollers
Knives
1 + 3
Operating Pressure
280 bar
Flow Required
150–200 l/min
Power Required
65–80 kW
Full Specifications
| Standard● selected | |
|---|---|
| Max Cutting Diameter | 540 mm |
| Weight (without rotator) | 680 kg |
| Width (head open) | 1,300 mm |
| Width (head closed) | 985 mm |
| Length | 1,280 mm |
| Height (without rotator) | 1,415 mm |
| Feed Force | 15–19 kN |
| Feeding | 2 rollers |
| Knives | 1 + 3 |
| Operating Pressure | 280 bar |
| Flow Required | 150–200 l/min |
| Power Required | 65–80 kW |
Technical Diagram
Click to enlarge
