Kesla · Authorized Importer
Tractor Loader

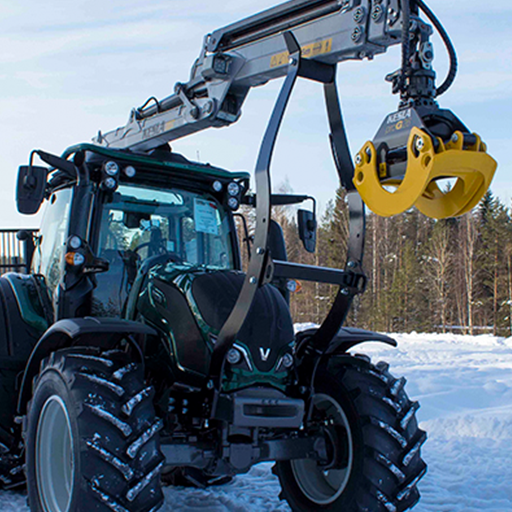

Kesla 305 305
Select model
Outreach
6.9 m
Boom Extension
1.8 m
Lifting Torque (net, 4m)
52 kNm
Lifting Torque (brutto, 4m)
65 kNm
Lifting Capacity at 3m
1,650 kg
Lifting Capacity at 4m
1,290 kg
Lifting Capacity at Max Outreach
720 kg
Slewing Angle
380°
Slewing Torque
16 kNm
Working Pressure
190 bar
Weight
1,260 kg
Full Specifications
| 305● selected | 305T | |
|---|---|---|
| Outreach | 6.9 m | 8.5 m |
| Boom Extension | 1.8 m | 2 x 1.7 m |
| Lifting Torque (net, 4m) | 52 kNm | 45 kNm |
| Lifting Torque (brutto, 4m) | 65 kNm | 65 kNm |
| Lifting Capacity at 3m | 1,650 kg | 1,500 kg |
| Lifting Capacity at 4m | 1,290 kg | 1,150 kg |
| Lifting Capacity at Max Outreach | 720 kg | 490 kg |
| Slewing Angle | 380° | 380° |
| Slewing Torque | 16 kNm | 16 kNm |
| Working Pressure | 190 bar | 190 bar |
| Weight | 1,260 kg | 1,370 kg |
All Models
Technical Diagram
Click to enlarge
Interested in this product?
Request a quote and our team will get back to you within one business day.
Request Quote →
